Convert Quadrantal Bearings to Whole Circle Bearing -Example

Convert Quadrantal Bearings to Whole Circle Bearing

Convert the following quadrantal bearing into whole circle bearing
1. N 30°30՛ E
2. S 50° E
3. S 20°45՛ W
4. N 25° W
Solution:
The whole circle bearing can be written directly as below

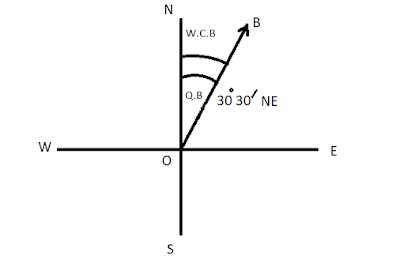

Line OB, W.C.B = 30°30՛
W.C.B For Quadrantal Bearings N 30°30՛ E
W.C.B For Quadrantal Bearings N 30°30՛ E

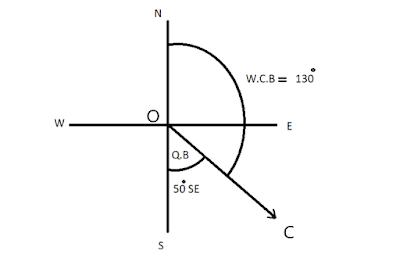

Line OC, W.C.B =180° - 50° = 130°
For Quadrantal Bearings S 50° E
W.C.B For Quadrantal Bearings S 50° E
Line OD, W.C.B = 180° + 20°45՛ = 200°45՛
W.C.B For Quadrantal Bearing 20°45՛
W.C.B For Quadrantal Bearing 20°45՛
Line OE, W.C.B = 360° - 25° = 335°
