Kerbs

What is kerb?

Kerb is a component of a city road. A kerb also termed as a curb is a vertical or sloping member provided along the edge of a pavement or Shoulder to give strength and protect the edge of the pavement.

The meaning of kerb(curb) is a barrier or boundary. But in highway engineering, it indicates the boundary between the pavement and shoulder or sometimes island or footpath or car parking space.

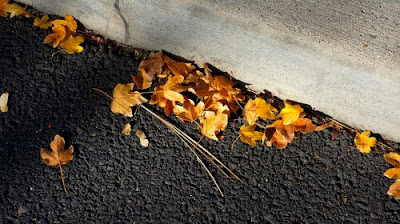

kerbs
Kerbs
kerbs are generally constructed of cut stone or cement concrete slabs.
The kerb and the road surface near the edge together from a side-channel which carries rainwater that comes from the road surface.

4 Types of Kerbs

Kerbs are the boundaries between the pavement and shoulder or footpath. kerbs may be divided into four groups based on their functions.
4 Types of Kerbs
4 Types of Kerbs
Following are the 4 types of kerbs are used in the roads:

(a) Low or Mountable Kerbs

This is also known as class I kerb. Its principal role is to control traffic to stay within its own lane. As the height of this form of kerb is low, it facilitates the driver to enter the area of the shoulder with less difficulty.

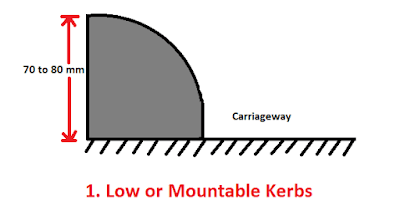

Mountable Kerbs
Mountable Kerbs
This type of kerb is also beneficial for the longitudinal drainage system. The height of this type of kerbs is 70 to 80 mm

(b) Low-Speed Barrier or Urban Parking Kerb

This is also known as Class II kerb. It prevents encroachment of slow speed or parking vehicles to the footpath. However, with severe emergency vehicles, they can climb and be parked on footpath or shoulder.
 Low-Speed Barrier kerbs
Low-Speed Barrier Kerbs
The height of this type of kerbs is 150 to 200 mm with a batter of 25 mm to avoid the scraping of tyres.

3. High-Speed Barrier Kerbs

This is also known as Class III kerb. It is usually used in critical places such as bridges or mountain roads, This type of kerbs are 230 to 450 mm or more in height.

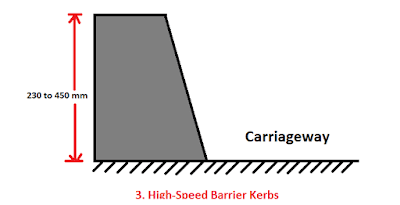

High-Speed Barrier Kerbs
High-Speed Barrier Kerbs

4. Submerged Kerbs

Submerged kerbs are provided in rural roads at pavement edges between edge and shoulders. It is provided in the form of standing bricks or concrete blocks.

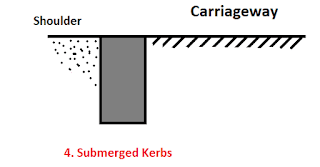

Submerged Kerbs
Submerged Kerbs
It offers lateral stability to the granular base course and flexible pavements.
